SAE1020 Carbon Steel Hexsteel Refractory Linings | 1" thickness | 14ga strips | 1X1m | China HESLY Brand

Name: SAE1020 Carbon Steel Hexsteel Refractory Linings 1quot thickness 14ga strips 1X1m China HESLY Brand
Brand: HESLY
Price: 1 USD

Brand Name : HESLY

Model Number : HEX202550304

Certification : ISO9001：2008

Place of Origin : HESLY Metal Mesh

MOQ : 1 ㎡

Price : negotiated as per the order

Payment Terms : TT/LC

Supply Ability : 800㎡/day

Delivery Time : according to the order (in stock)

Packaging Details : Pallet

Material : SAE1020

Depth : 19mm

Hexagonal Hole : 50mm

Dimension : 1000x2000mm

Contact Now

SAE1020 Carbon Steel Hexsteel Refractory Linings | 1" thickness | 14ga strips | 1X1m | China HESLY Brand

HESLY hex metal, hex mesh & hexsteel, your best choice for Anchoring & Reinforcement for Refractories and Concrete Flooring !!!

What's Hex Mesh ?

HESLY Steel’s Hex Mesh range is defined as a unique hexagonal cellular mesh steel, made of flat bar which is designed to provide brilliant retention and reinforcement of thin wall refractories and fully complements dense hydraulic and chemically bonded refractories in resisting erosion. It acts as a surface framework to hold cement or refractory in position, and relieves stress in the lining’s upper crust, retarding erosion, corrosion, blistering and cracking.

Hot gaseous substances cannot erode the refractory because they are reflected away from the surface by the metal honeycomb- shaped grid.

The flexibility of HESLY Steel’s Hex Metal allows it to be rolled, and easily conforms to circular shapes. It is recommended for use when placement is spaced from the steel shell to allow room for thick insulation between the metal shell and the armoured surface.

Applications / Industries of Hex Mesh

Material Typical Service Temperature

Anchorage Material		Chemical Composition								Typical Service Temperature
AISI	DIN	C%	Si%	Mn%	P%	S%	Cr%	Ni%	others	Typical Service Temperature
304	1.4301	≤0.08	≤1.00	≤2.00	≤0.45	≤0.30	18.0—20.0	8.0—10.0	N	800℃
316	1.4401/1.4436	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	16.0—18.0	10.0—14.0	N:Mo	800℃
321	1.4541	≤0.08	≤0.75	≤2.00	≤0.45	≤0.30	17.0—19.0	9.0—12.0	Ti	800℃
310S	1.4845	≤0.08	≤1.50	≤2.00	≤0.45	≤0.30	24.0—26.0	19.0—22.0	—	1150℃
Inconel 601	2.4851	≤0.10	≤0.50	≤1.00	—	≤0.15	21.0—25.0	58.0—63.0	Al:Cu	1200℃
Inconel 800	1.4876	≤0.10	≤1.00	≤1.50	≤0.45	≤0.15	19.0—23.0	30.0—35.0	Al:Ti	1200℃
410S	1.4001	≤0.08	≤1.00	≤1.00	≤0.40	≤0.30	11.5—13.5	≤0.60	—	750℃
CARBON STEEL		VARIOUS								550℃

Commond Specification Sheet

HESLY-hexsteel ordinary specifications
ITEM	SPECS		B	A	AF
1	1.2 X 10 X 50mm		1.2mm	10mm	40mm
2	1.2 X 15 X 50mm		1.2mm	15mm	50mm
3	1.2 X 20 X 50mm		1.2mm	20mm	50mm
4	1.5 X 10 X 50mm		1.5mm	10mm	50mm
5	1.5 X 15 X 50mm		1.5mm	15mm	50mm
6	1.5 X 20 X 50mm		1.5mm	20mm	50mm
7	1.8 X 15 X 50mm		1.8mm	15mm	50mm
8	1.8 X 20 X 50mm		1.8mm	20mm	50mm
9	1.8 X 25 X 50mm		1.8mm	25mm	50mm
10	2.0 X 15 X 50mm		2.0mm	15mm	50mm
11	2.0 X 20 X 50mm		2.0mm	20mm	50mm
12	2.0 X 25 X 50mm		2.0mm	25mm	50mm
13	2.0 X 30 X 50mm		2.0mm	30mm	50mm
14	2.0 X 30 X 80mm		2.0mm	30mm	80mm
Remark	A/F	Min: 40mm Max: 100mm
	MATERIAL	A3 ,0Cr13,1Cr13,SS304,SS316,1Cr18Ni9Ti,SS310S

Reference Photos

$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$

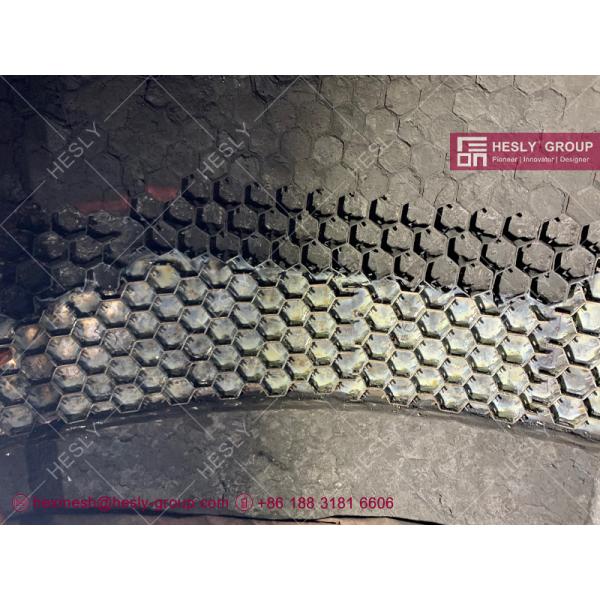

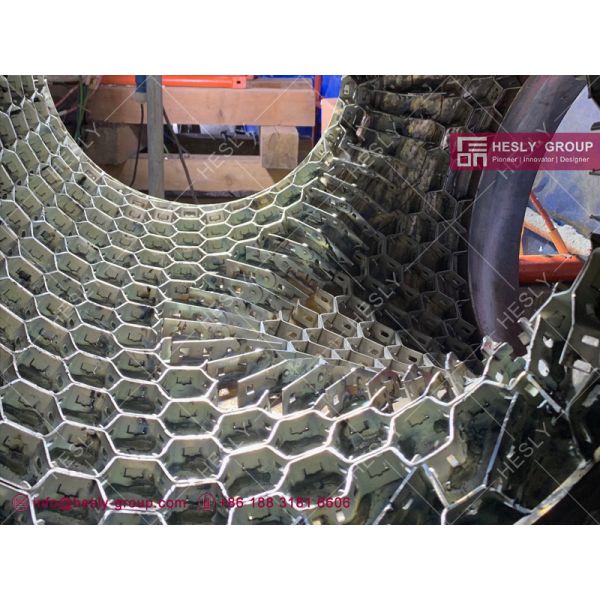

Ducts and Flue Gas Lines Hexmesh	310S Hexmesh for Cyclones
$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$
Hexmesh for Windboxed Linings	Hexmesh For Fan Casings
$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$
Hexmesh Ashpits	Hexmesh Reactor Vessels

Package and Delivery

$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$
China Hexmesh Factory	China Hexmetal Exporter

$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$
HESLY CHINA HEXMESH & ANCHORS FACTORY
$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	+86 188 3181 6606 (whatsapp/wechat)
$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	+86-318-7888900
$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	+86-318-7888900
$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	hexmesh@hesly-group.com
$SAE1020 Carbon Steel Hexsteel Refractory Linings \| 1" thickness \| 14ga strips \| 1X1m \| China HESLY Brand$	www.hex-mesh.com
